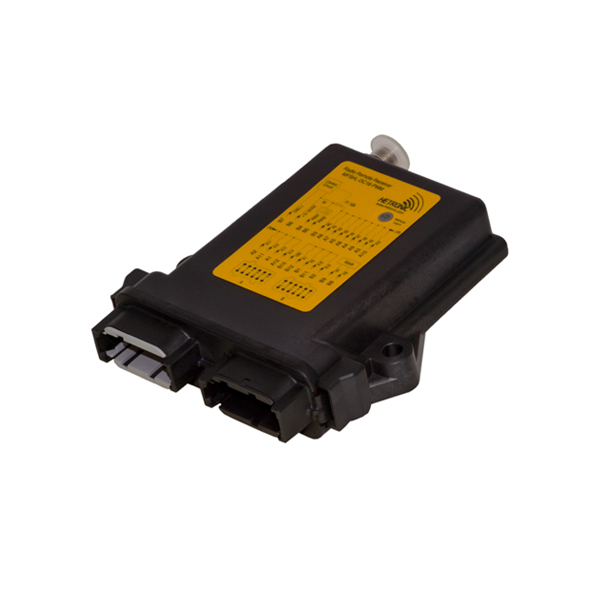

RX MFSHL DC8

Lightweight and portable, the RX MFSHL DC8 offer the simplicity and convenience of quick connect/disconnect. RX MFSHL DC8 offers one (1) Main Contact relay, seven (7) solid state digital outputs, an Address Learn feature and LED diagnostics for power/operation, transmission signal reception, main contact and error. Typical operating voltage range is 12VDC – 24VDC.

  • Weight

    245gr (0.5 lbs)

  • Dimensions

    H: 148mm (5.8″)

    W: 118mm (4.6″)

    D: 36mm (1.4″)

  • Frequencies

    868 MHz / 915 MHz and 2.4GHz

  • IP Rating

  • Operating Temperature Range

    -20oC to +70o C

    (-4o F to +158o F)

  • H-Link

    H-Link Configurable
